ICSI Injection Pipettes

For intracytoplasmic injection of sperm inside the oocyte.

References Downloads

For a precise injection of the sperm inside of the oocyte minimizing damage and allowing a smooth handling.

Main characteristics

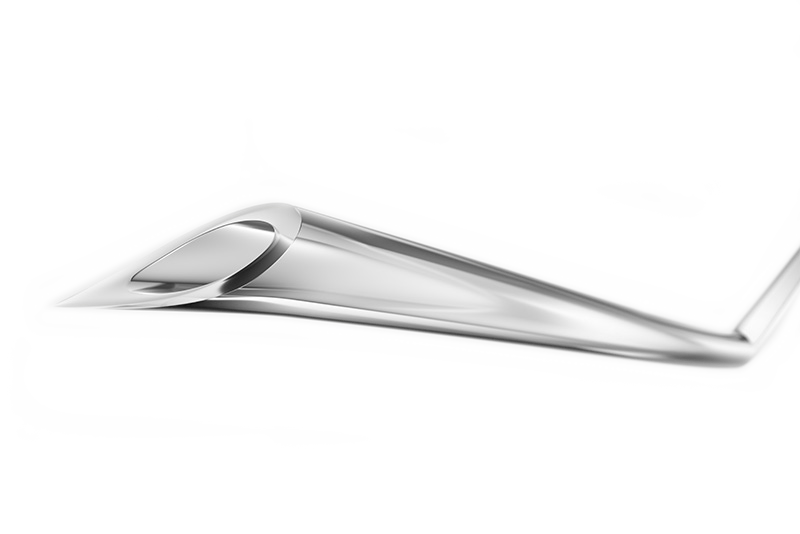

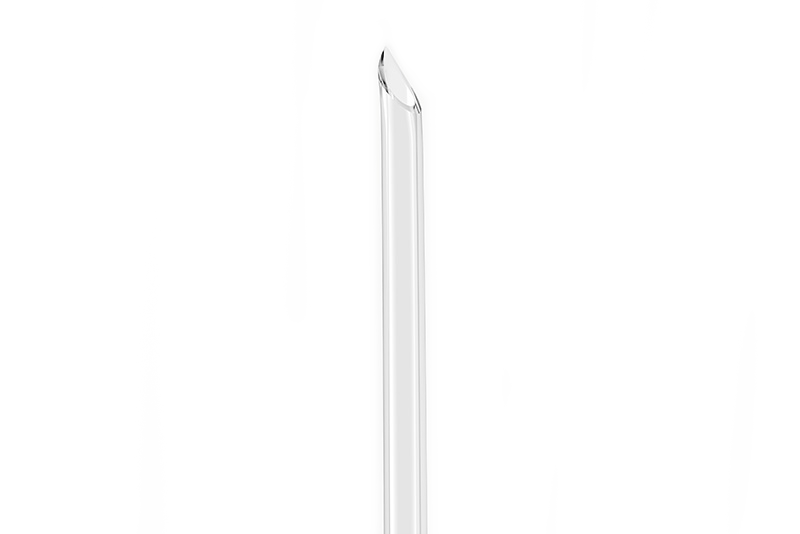

  • Spiked tip to minimize damage to oocyte
  • Smooth handling of sperm and cytoplasm

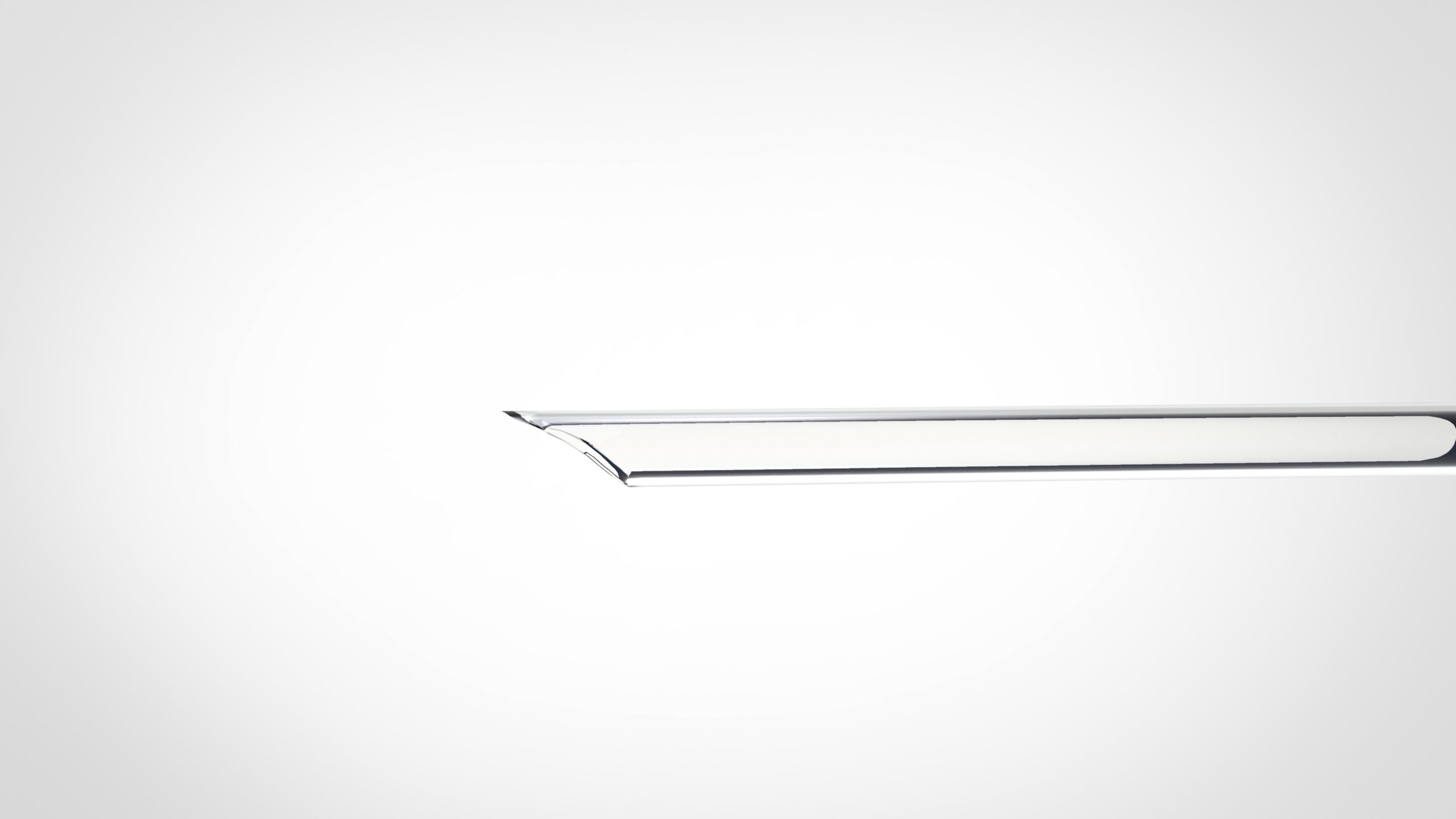

  • Available with long or short parallel walls
  • Three different internal diameters: 4.0-4.5 μm, 4.5-5.0 μm
    and 5.0-5.5 μm
  • Two different angle options: 30° and 35° 
  • Tip to elbow length range: from 0.50 mm to 1 mm

        Long Parallel Walls

         Short Parallel Walls

The IVF Lifecycle

Kitazato offers a broad selection of quality products that maximize success at every step of the IVF Lifecycle. Learn more about the products involved in each IVF procedure.

ICSI
More info

ICSI Injection Pipettes

Order Number Code Inner Diameter
(µm)		 Tip Bend Angle
 (°)		 Tip to Elbow Length
 (mm)		 Quantity
95204 MT-INJ-1S45-30 4.0-4.5 30 0.50 10
95205 MT-INJ-1S45-35 4.0-4.5 35 0.50 10
95206 MT-INJ-1L45-30 4.0-4.5 30 1.00 10
95207 MT-INJ-1L45-35 4.0-4.5 35 1.00 10
95234 MT-INJ-1S50-30 4.5-5.0 30 0.50 10
95235 MT-INJ-1S50-35 4.5-5.0 35 0.50 10
95236 MT-INJ-1L50-30 4.5-5.0 30 1.00 10
95237 MT-INJ-1L50-35 4.5-5.0 35 1.00 10
95264 MT-INJ-1S55-30 5.0-5.5 30 0.50 10
95265 MT-INJ-1S55-35 5.0-5.5 35 0.50 10
95266 MT-INJ-1L55-30 5.0-5.5 30 1.00 10
95267 MT-INJ-1L55-35 5.0-5.5 35 1.00 10

Order Number Code Inner Diameter
(µm)		 Tip Bend Angle
 (°)		 Tip to Elbow Length
 (mm)		 Quantity
95200 MT-INJ-2S45-30 4.0-4.5 30 0.70 10
95201 MT-INJ-2S45-35 4.0-4.5 35 0.70 10
95202 MT-INJ-2L45-30 4.0-4.5 30 1.00 10
95203 MT-INJ-2L45-35 4.0-4.5 35 1.00 10
95230 MT-INJ-2S50-30 4.5-5.0 30 0.70 10
95231 MT-INJ-2S50-35 4.5-5.0 35 0.70 10
95232 MT-INJ-2L50-30 4.5-5.0 30 1.00 10
95233 MT-INJ-2L50-35 4.5-5.0 35 1.00 10
95260 MT-INJ-2S55-30 5.0-5.5 30 0.70 10
95261 MT-INJ-2S55-35 5.0-5.5 35 0.70 10
95262 MT-INJ-2L55-30 5.0-5.5 30 1.00 10
95263 MT-INJ-2L55-35 5.0-5.5 35 1.00 10

Order Number Code Inner Diameter
(µm)		 Tip Bend Angle
 (°)		 Tip to Elbow Length
 (mm)
95208 MT-INJ-3L45-30 4-4.5 30 1.00
95209 MT-INJ-3L45-35 4-4.5 35 1.00
95210 MT-INJ-3L50-30 4.5-5 30 1.00
95211 MT-INJ-3L50-35 4.5-5 35 1.00

Please note that products may only be available in selected countries.
